Vertical Lambo Doors

  • ShippingFree in the US
  • Returns7 days, unused
  • InstallFactory bolt pattern
  • Made inthe USA

Questions about fit? Email sales@verticallambodoors.com.

BMW · 6 Series 03-10

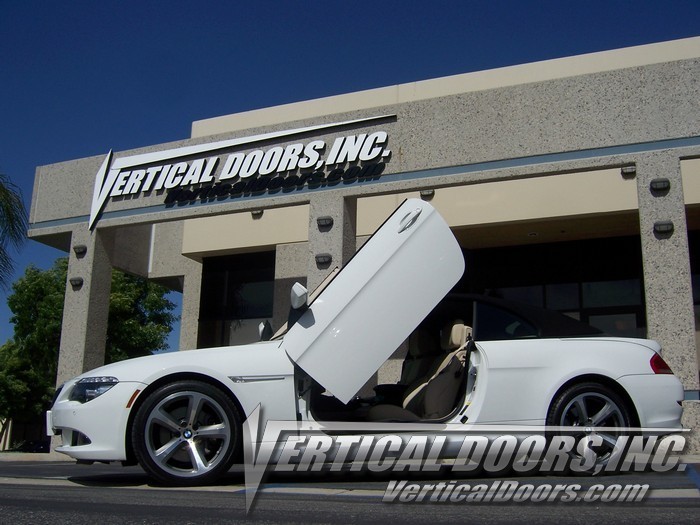

BMW 6 Series 2003-2010 Vertical Lambo Doors

Made in the USA by Vertical Doors, Inc.Part # VDCBMW60309

$1,599 $2,099 Made to order

Made to order by Vertical Doors, Inc.: ships in 10–15 business days, then 3–5 days by FedEx Ground in the US.

Fits BMW 6 Series 2003–2010. Check yours:

Total · free US shipping

$1,599

or pay with

Secure card checkout by Stripe.

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number
VDCBMW60309
Fits
BMW 6 Series2003–2010
Made by
Vertical Doors, Inc., USA
In the kit
Left and right hinge assemblies, gas shocks, mounting hardware, instructions

The BMW 6 Series built from 2003 to 2010 is a long, low grand tourer, and vertical doors change how it opens up. Instead of swinging outward, both doors rotate up and open vertically, which helps in tight parking spots and gets noticed everywhere else. This Vertical Doors, Inc. kit, part number VDCBMW60309, covers every trim of the 6 Series across the 2003 through 2010 model years. Here is what comes in the box:

  • 2 Vertical Doors, Inc. lambo door hinges, one for each side of the car
  • 2 gas shocks that support the doors through their travel
  • All the mounting hardware the conversion needs

The hinges are a direct bolt-on design that mounts to the factory bolt pattern, so the body does not get cut or welded, and the whole conversion is reversible if you ever want the stock doors back on. Each kit is made in the USA from domestic hardened steel, and the design is patented here as well. An instruction manual ships with the kit and free tech support is a phone call or email away, but we still recommend having a professional installer do the work using those supplied instructions so the doors line up and swing the way they should.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
