Dodge Stealth 1991-1996 Vertical Lambo Doors

Name: Dodge Stealth 1991-1996 Vertical Lambo Doors
Brand: Vertical Doors, Inc.
SKU: VDCDSTE9196
Price: 1099.00 USD
Availability: InStock

Made in the USA by Vertical Doors, Inc.Part # VDCDSTE9196

$1,099 $1,295 Made to order

Made to order by Vertical Doors, Inc.: ships in 10–15 business days, then 3–5 days by FedEx Ground in the US.

Fits Dodge Stealth 1991–1996. Check yours:

Total · free US shipping

$1,099

or pay with

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number: VDCDSTE9196
Fits: Dodge Stealth1991–1996
Made by: Vertical Doors, Inc., USA
In the kit: Left and right hinge assemblies, gas shocks, mounting hardware, instructions

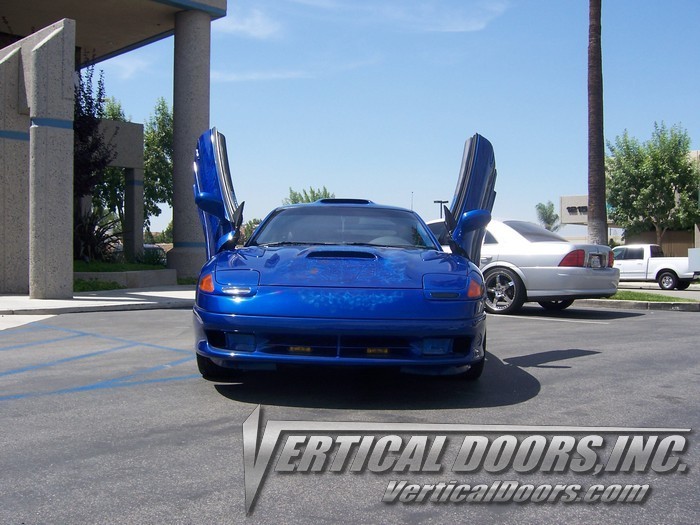

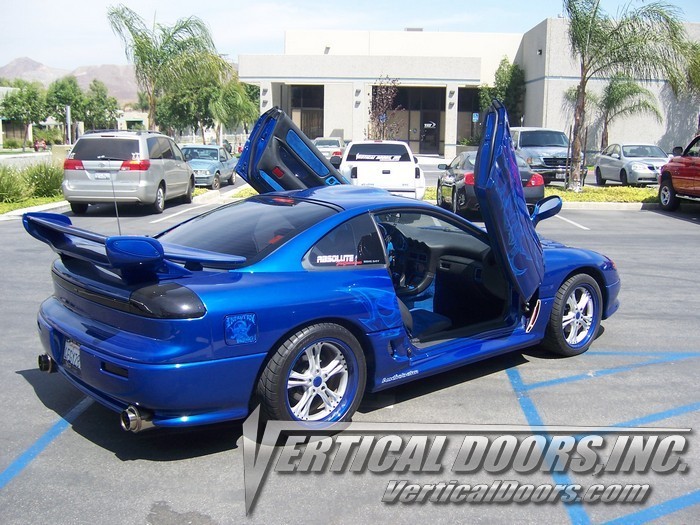

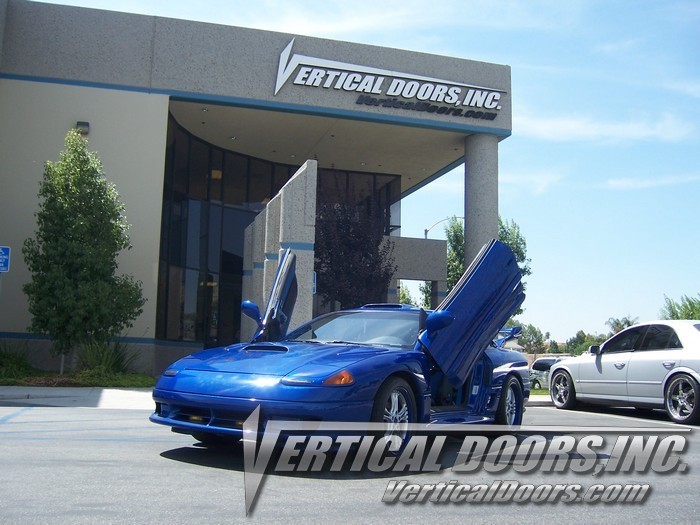

The 1991-1996 Dodge Stealth already has the low wedge body of a nineties exotic, and vertical doors finish the job: instead of swinging out into the next car, each door pivots up and forward the way a Lamborghini’s does. Kit VDCDSTE9196 from Vertical Doors, Inc. is engineered specifically for the Stealth and fits all trim models from 1991 through 1996.

2 Vertical Doors, Inc. lambo door hinges, one for each side of the car
2 gas shocks
All mounting hardware needed for the conversion

The hinges are a direct bolt-on and mount to the factory bolt pattern, and the conversion is completely reversible if you ever decide to return the car to its stock doors. VDI builds the kit in the USA from domestic hardened steel, and the design is patented here as well. An instruction manual comes in the box and free tech support is available by phone, email, or social media, but door fit and alignment matter on a conversion like this, so we recommend having a professional installer do the work using the instructions supplied with the kit.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
