ShippingFree in the US
ReturnsFinal sale
InstallFactory bolt pattern
Made inthe USA

Vertical Doors, Inc. sells this kit as final sale: it can’t be returned or exchanged, so check your year and model before ordering. Returns policy

Questions about fit? Email sales@verticallambodoors.com.

Ford · F250/F350/Superduty 99-10

Ford F350/F250/SuperDuty 1999-2016 Vertical Lambo Doors

Name: Ford F350/F250/SuperDuty 1999-2016 Vertical Lambo Doors
Brand: Vertical Doors, Inc.
SKU: VDCF3509910
Price: 1099.00 USD
Availability: InStock

Made in the USA by Vertical Doors, Inc.Part # VDCF3509910

$1,099 $1,499 Made to order

Made to order by Vertical Doors, Inc.: ships in 10–15 business days, then 3–5 days by FedEx Ground in the US.

Fits Ford F350/F250/Superduty 1999–2016. Check yours:

Total · free US shipping

$1,099

or pay with

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number: VDCF3509910
Fits: Ford F350/F250/Superduty1999–2016
Made by: Vertical Doors, Inc., USA
In the kit: Left and right hinge assemblies, gas shocks, mounting hardware, instructions

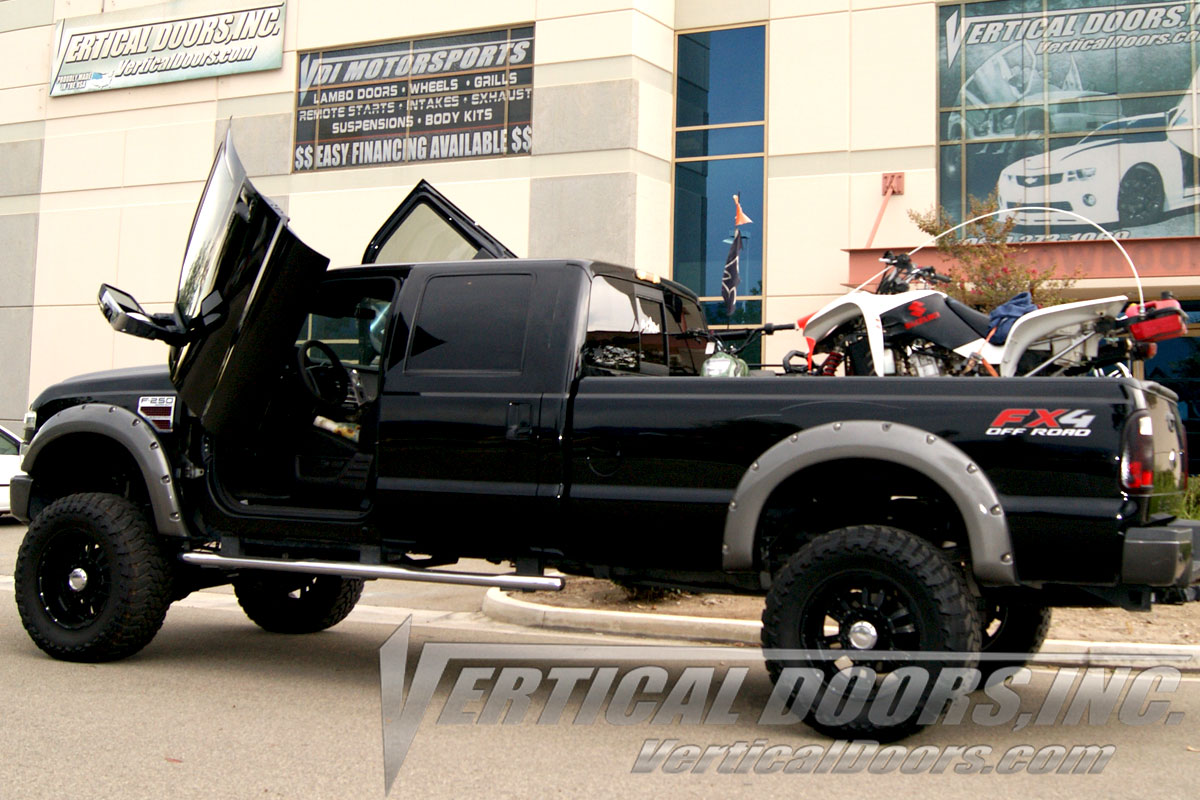

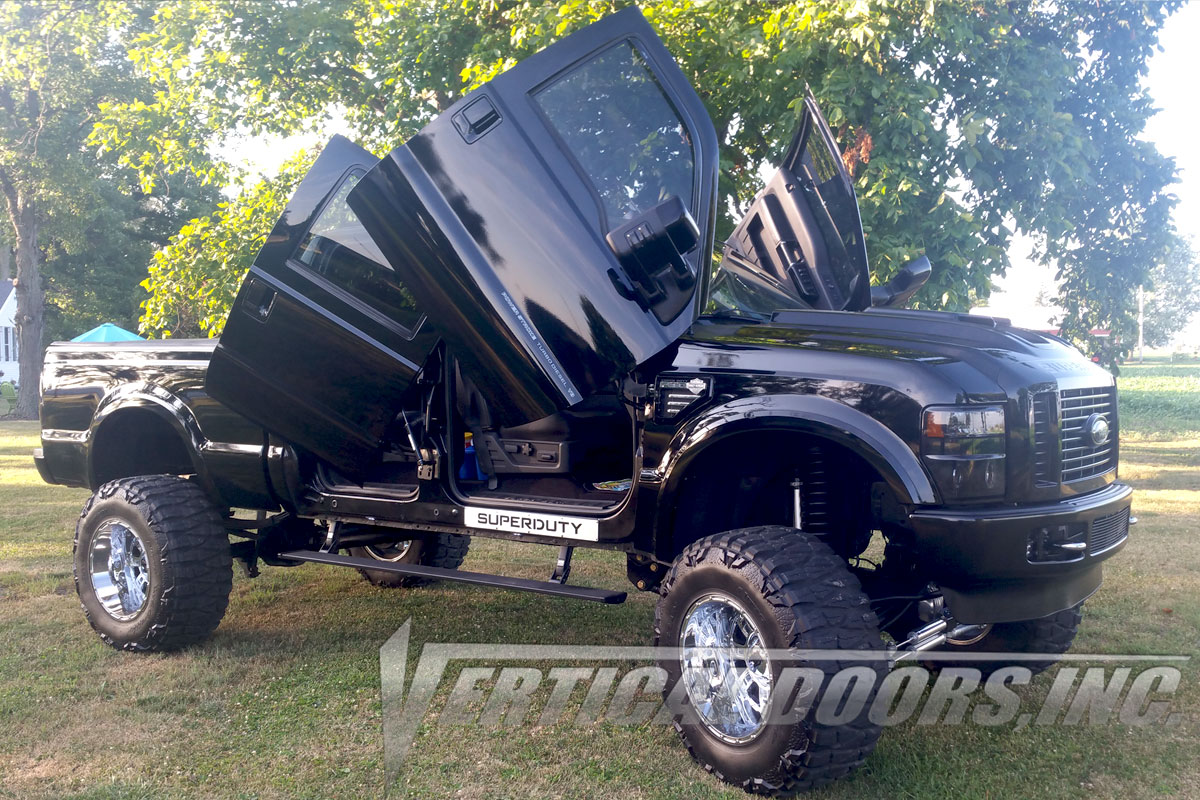

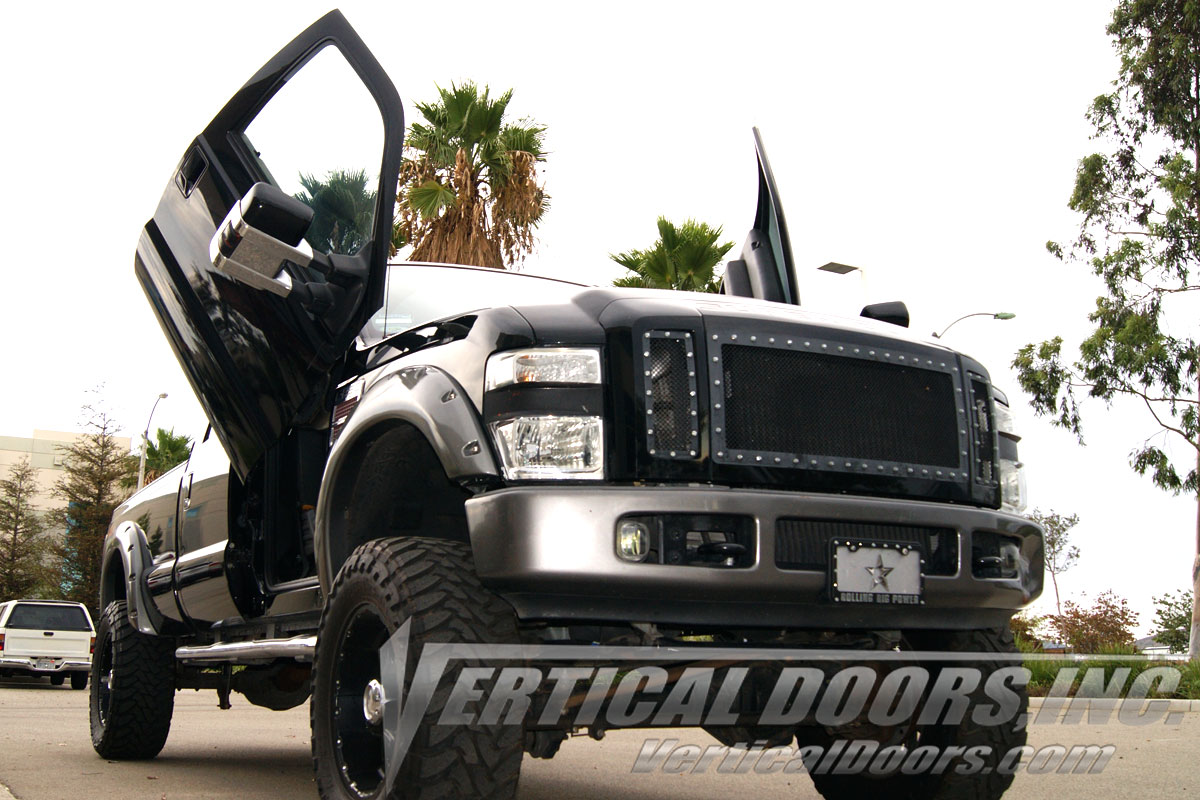

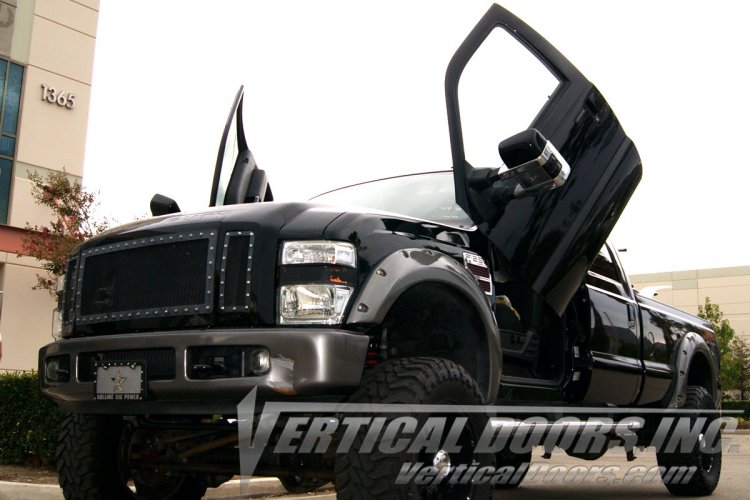

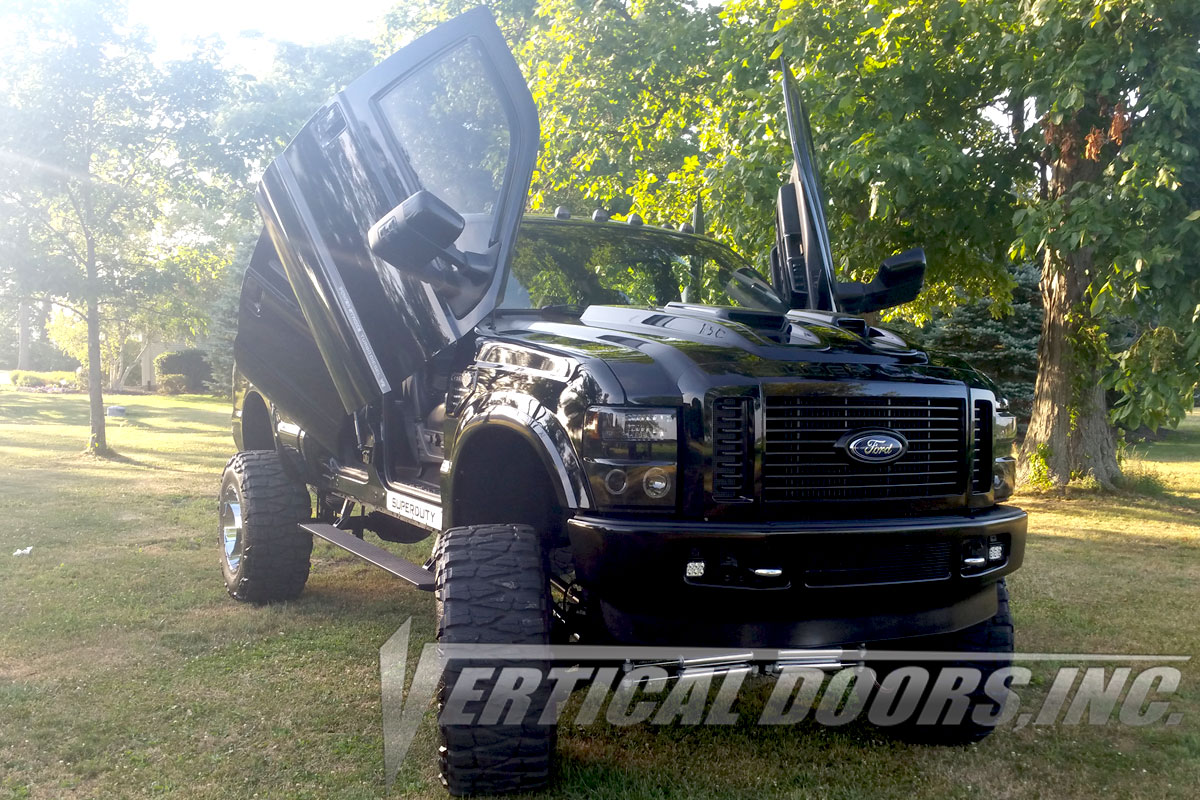

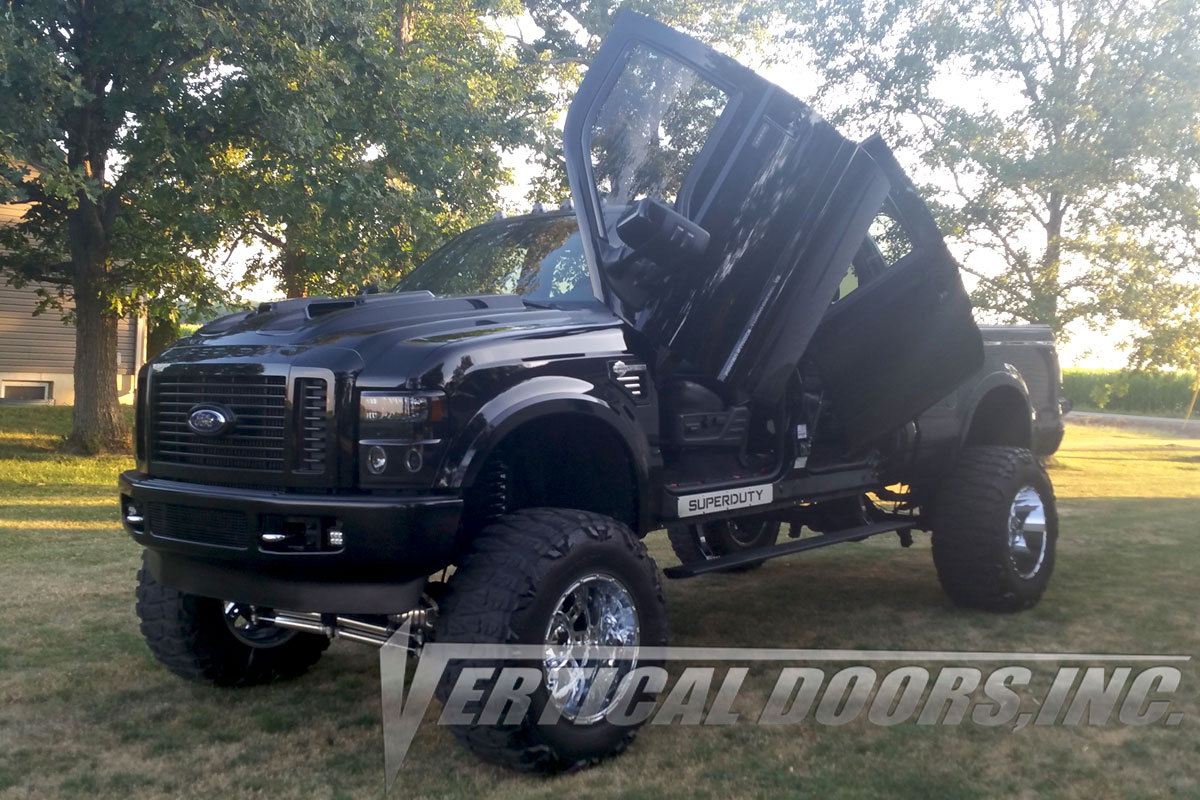

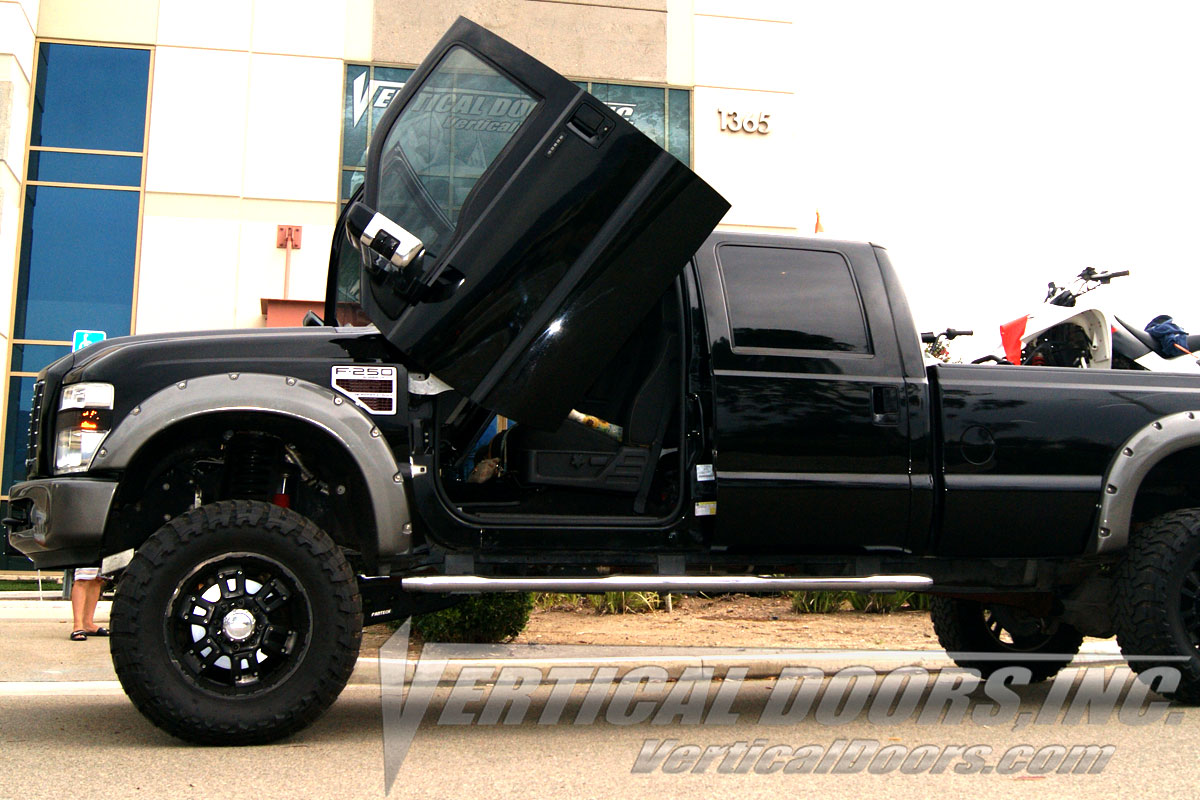

Big doors on a big truck need a lot of swing room, and the Super Duty has some of the biggest doors on the road. This kit converts the factory doors on the 1999-2016 Ford F250, F350, F450, and F550 Super Duty to open vertically instead of out, and it fits every trim across that whole run. The part number is VDCF3509910, built by Vertical Doors, Inc.

Inside the box:

Two VDI lambo door hinges, one for each side of the truck
Two gas shocks to lift the doors and hold them up
All the mounting hardware needed for the install

The hinges bolt directly to the factory bolt pattern, so the conversion is fully reversible; unbolt the kit and the truck goes back to stock. Every hinge is made in the USA from domestic hardened steel, and the design is patented here as well. The install is within reach of a mechanically inclined owner with basic tools, but we recommend professional installation using the instructions supplied with the kit, and free tech support is available if questions come up. One thing to know before ordering: truck and SUV kits are non-refundable and non-exchangeable, so confirm your fitment first.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
