ShippingFree in the US
ReturnsFinal sale
InstallFactory bolt pattern
Made inthe USA

Vertical Doors, Inc. sells this kit as final sale: it can’t be returned or exchanged, so check your year and model before ordering. Returns policy

Questions about fit? Email sales@verticallambodoors.com.

Hummer · H2 03-09

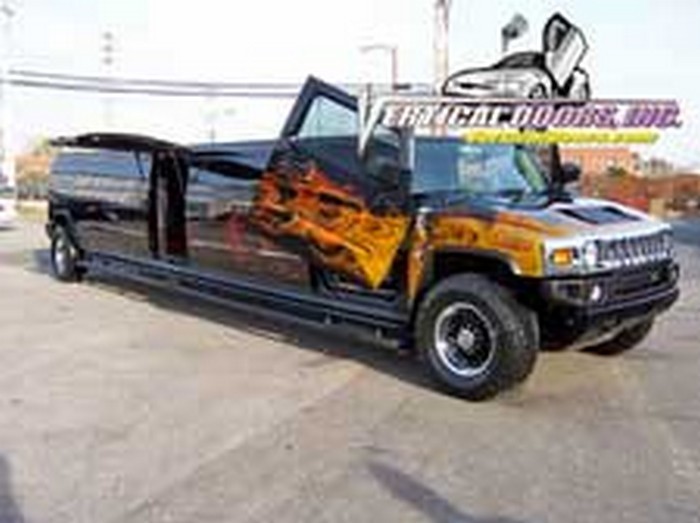

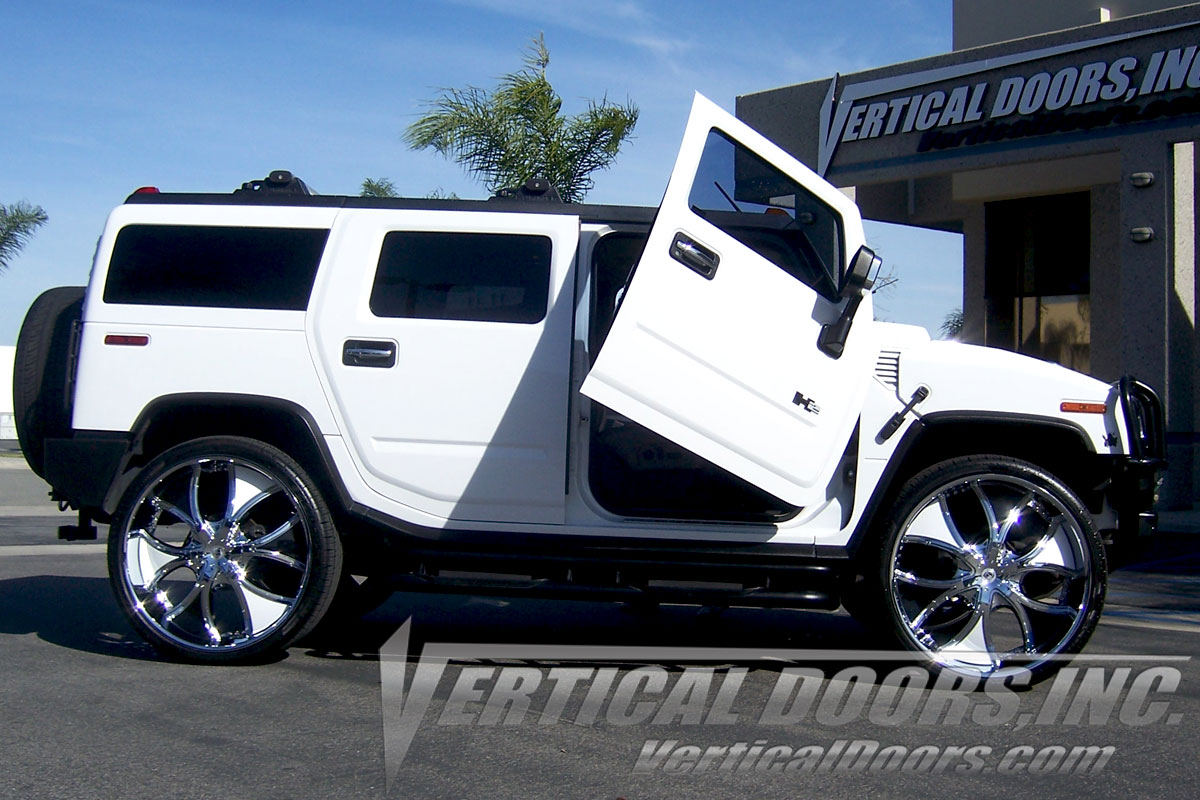

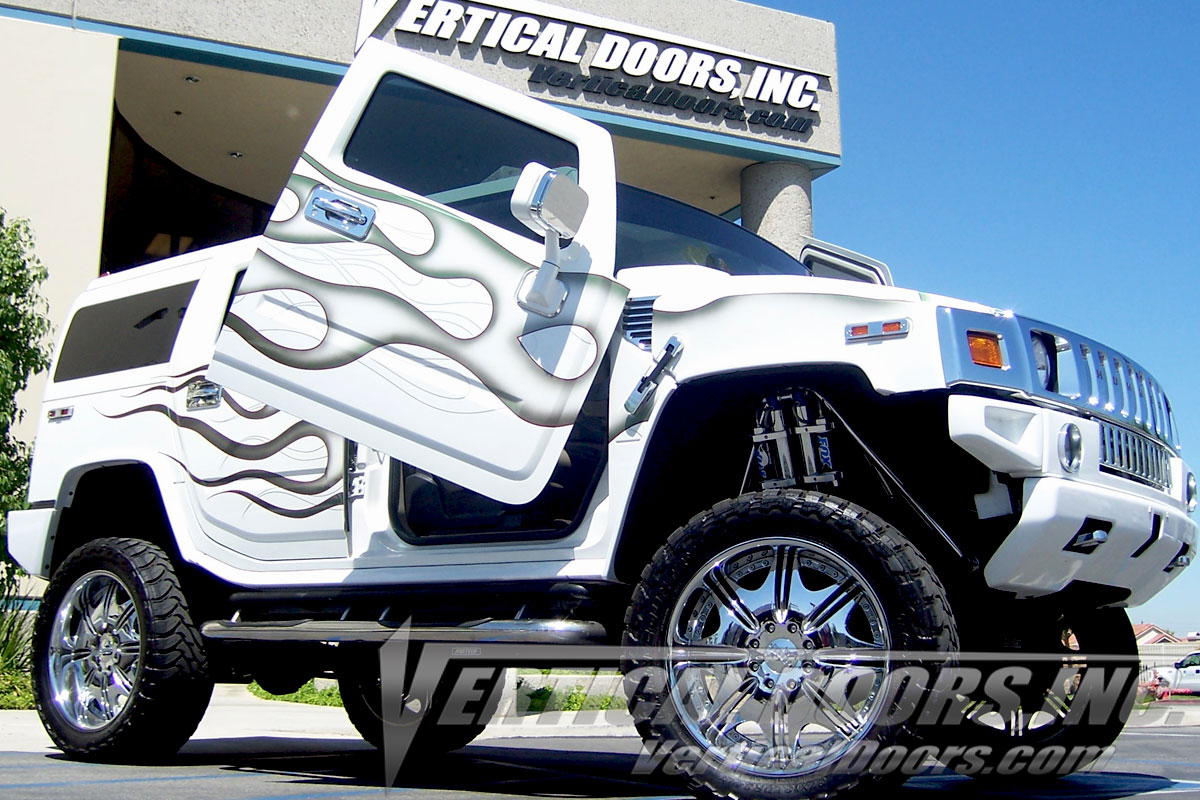

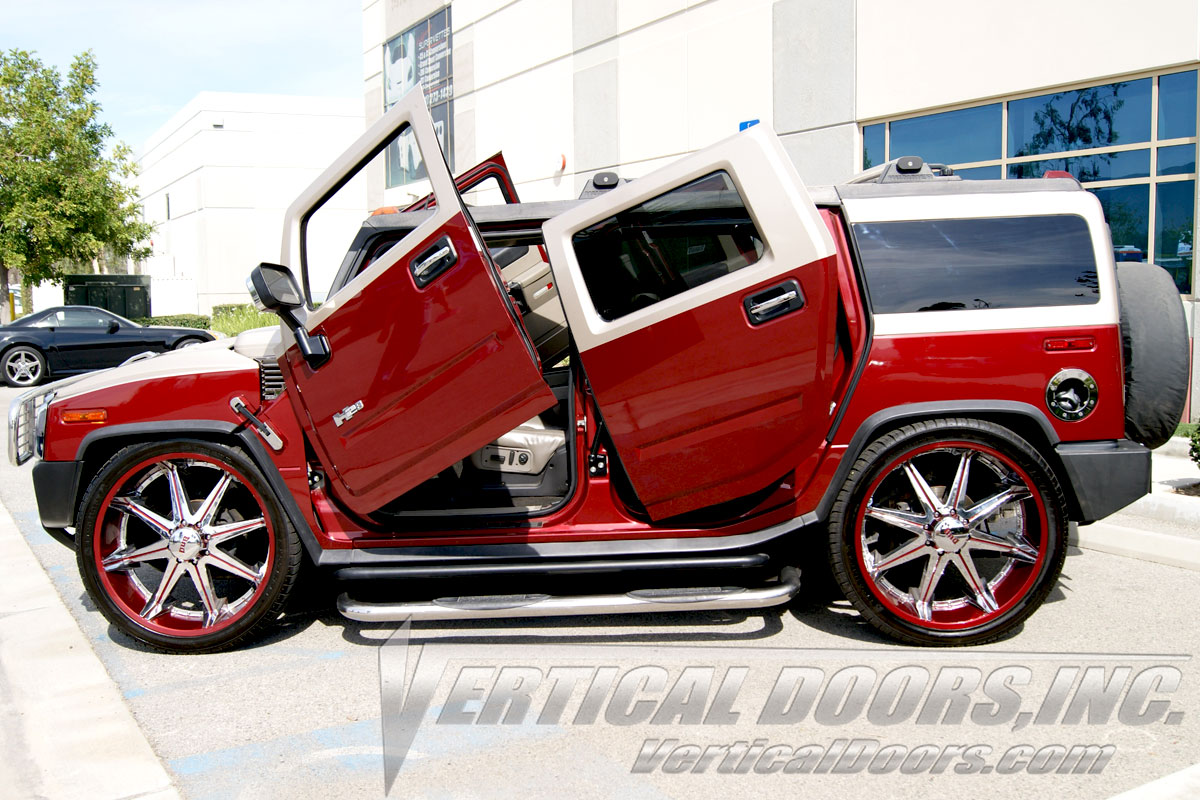

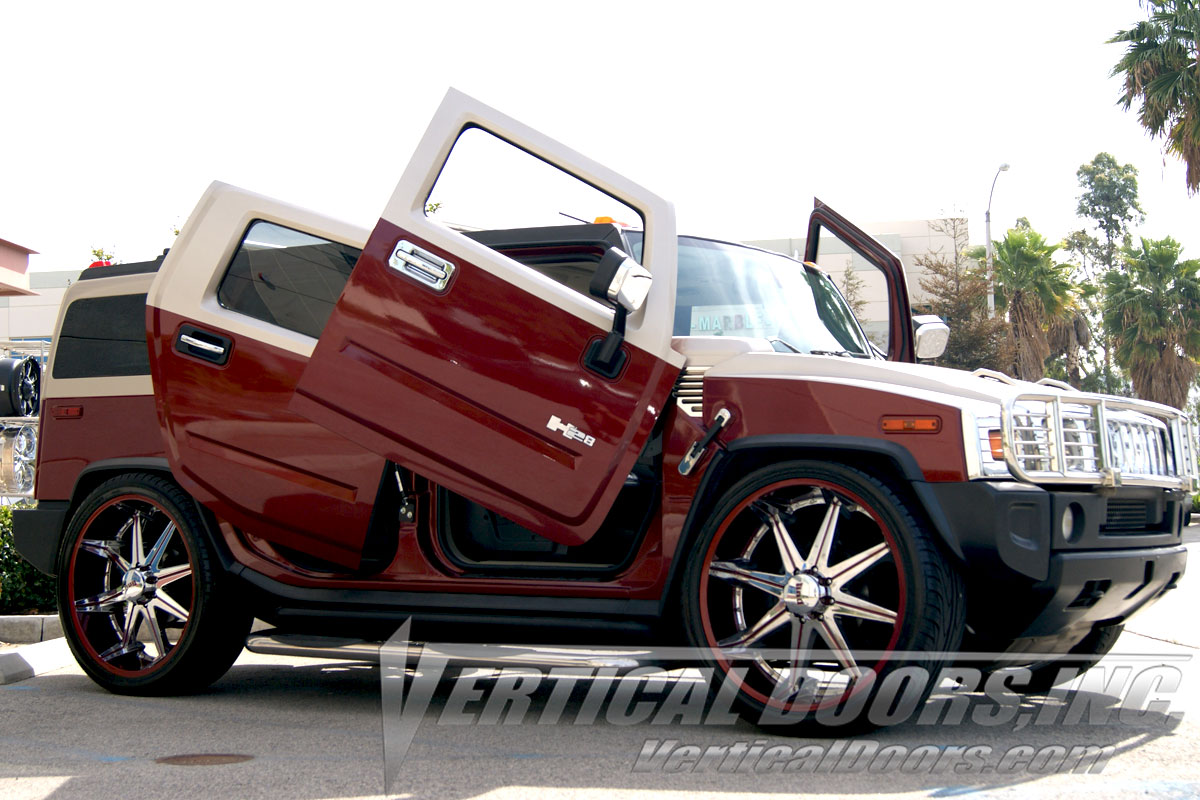

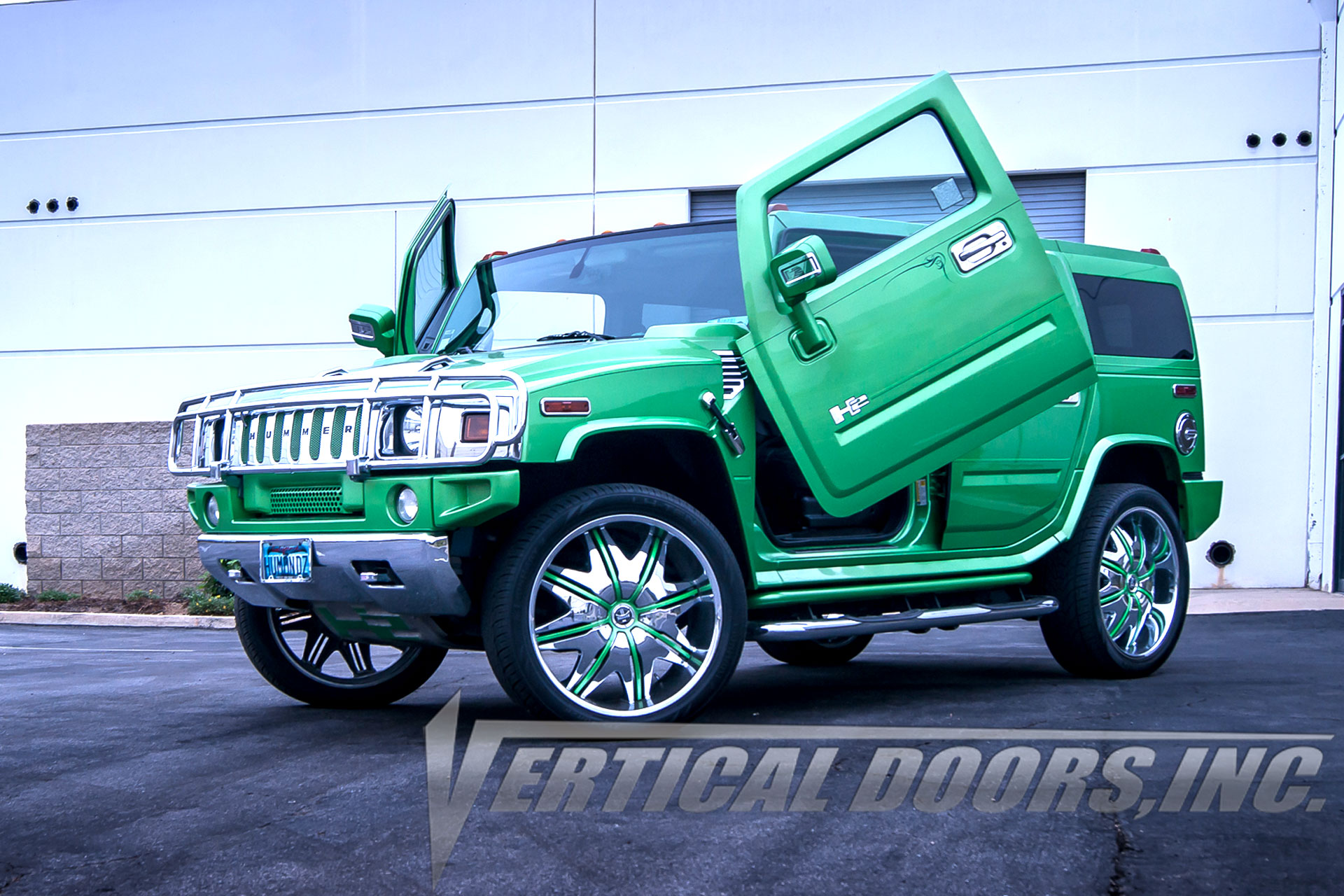

Hummer H2 2003-2009 Vertical Lambo Doors

Name: Hummer H2 2003-2009 Vertical Lambo Doors
Brand: Vertical Doors, Inc.
SKU: VDCHUMH20309
Price: 1199.00 USD
Availability: InStock

Made in the USA by Vertical Doors, Inc.Part # VDCHUMH20309

$1,199 $1,699 Only 2 left

Fits Hummer H2 2003–2009. Check yours:

Total · free US shipping

$1,199

Only 2 left in stock.

or pay with

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number: VDCHUMH20309
Fits: Hummer H22003–2009
Made by: Vertical Doors, Inc., USA
In the kit: Left and right hinge assemblies, gas shocks, mounting hardware, instructions

Fitment runs from 2003 through 2009 and covers every trim of the Hummer H2 built in that span. Part number VDCHUMH20309 is a lambo door conversion kit from Vertical Doors, Inc., designed around this specific truck rather than adapted from a universal setup. The hinges swing each door up instead of out, using your factory doors.

2 Vertical Doors, Inc. lambo door hinges, one for each side
2 gas shocks to support the doors through their travel
All mounting hardware for the conversion

The hinge kit bolts directly to the H2’s factory bolt pattern, and the conversion is fully reversible if you ever want the truck back to stock. The hinges are made in the USA from domestic hardened steel, and the design is patented. An instruction manual ships with the kit; we recommend having a professional installer do the work using those instructions, and free tech support is available by phone or email if anything comes up during the job. One thing to know before ordering: truck and SUV kits, this one included, are non-refundable and non-exchangeable, so double-check your year and model first.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
