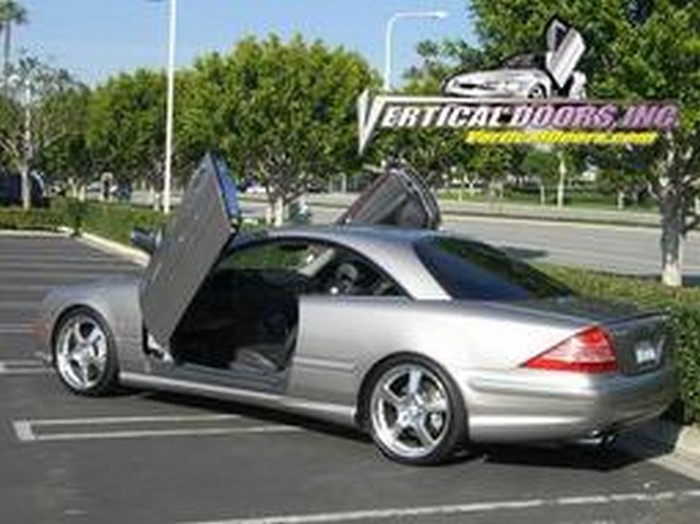

MERCEDES CL 2000-2006 VERTICAL LAMBO DOORS

Name: MERCEDES CL 2000-2006 VERTICAL LAMBO DOORS
Brand: Vertical Doors, Inc.
SKU: VDCMERCL0006
Price: 1199.00 USD
Availability: InStock

Made in the USA by Vertical Doors, Inc.Part # VDCMERCL0006

$1,199 $1,699 Made to order

Made to order by Vertical Doors, Inc.: ships in 10–15 business days, then 3–5 days by FedEx Ground in the US.

Fits Mercedes CL 2000–2006. Check yours:

Total · free US shipping

$1,199

or pay with

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number: VDCMERCL0006
Fits: Mercedes CL2000–2006
Made by: Vertical Doors, Inc., USA
In the kit: Left and right hinge assemblies, gas shocks, mounting hardware, instructions

Part number VDCMERCL0006 comes from Vertical Doors, Inc., the company that has been building lambo door conversions in the USA for over 20 years. This kit is made specifically for the Mercedes CL-Class and covers every year from 2000 through 2006, all trim models included. The hinges are cut from domestic hardened steel and the design is patented in the United States.

2 Vertical Doors, Inc. lambo door hinges, one for each side
2 gas shocks
All mounting hardware for the conversion

This is a true bolt-on kit. The hinges mount straight to the CL’s factory bolt pattern, and the conversion is completely reversible if you ever decide to go back to the stock swing. Each kit ships with an instruction manual, and VDI backs it with free tech support if you get stuck. That said, we recommend having the kit fitted by a professional installer working from the instructions supplied with the kit; the doors need careful alignment, and a shop that has done conversions before will get it right the first time. VDI can also connect you with local, nationwide, and mobile installers if you need one.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
