Vertical Doors, Inc. sells this kit as final sale: it can’t be returned or exchanged, so check your year and model before ordering. Returns policy

Questions about fit? Email sales@verticallambodoors.com.

Ford · Excursion 00-05

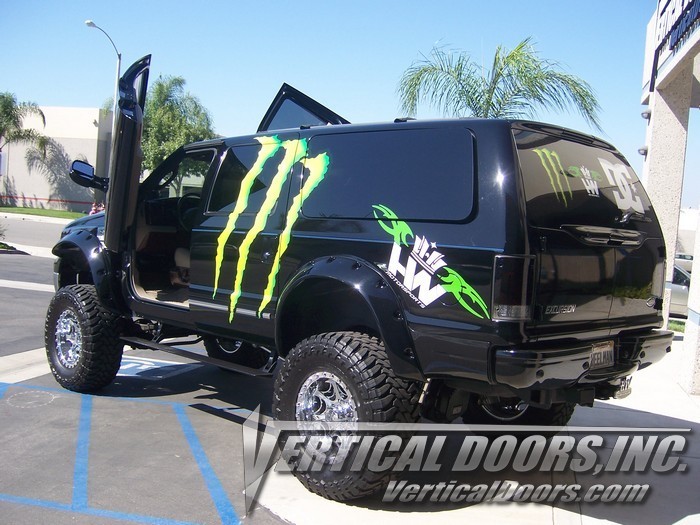

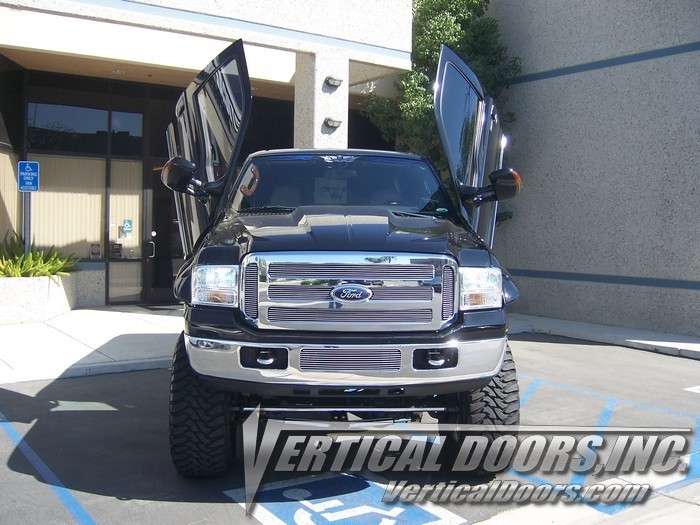

Ford Excursion 2000-2005 Vertical Lambo Doors

Name: Ford Excursion 2000-2005 Vertical Lambo Doors
Brand: Vertical Doors, Inc.
SKU: VDCFEXC0005
Price: 1099.00 USD
Availability: InStock

Made in the USA by Vertical Doors, Inc.Part # VDCFEXC0005

$1,099 $1,499 Made to order

Made to order by Vertical Doors, Inc.: ships in 10–15 business days, then 3–5 days by FedEx Ground in the US.

Fits Ford Excursion 2000–2005. Check yours:

Total · free US shipping

$1,099

or pay with

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number: VDCFEXC0005
Fits: Ford Excursion2000–2005
Made by: Vertical Doors, Inc., USA
In the kit: Left and right hinge assemblies, gas shocks, mounting hardware, instructions

This is a direct bolt-on hinge conversion kit from Vertical Doors Inc., part number VDCFEXC0005. The two lambo hinges mount straight to the factory bolt pattern, so the stock doors swing out and then up without permanent modification to the body, and the included gas shocks hold each door once it is raised. The whole conversion is reversible, so removing the kit puts the Excursion back on its original hinges.

2 Vertical Doors Inc. lambo door hinges, one per side
2 gas shocks
All mounting hardware
Printed installation instructions

Fitment covers the Ford Excursion from 2000 through 2005, every model year and every trim level in that range. The hinges are made in the USA from domestic hardened steel and the design is patented. While the kit bolts to existing mounting points, we recommend having a professional installer do the work, following the instructions supplied with the kit. One note before ordering: truck and SUV kits are non-refundable and non-exchangeable, so double-check your year and model before you buy.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
