Mazda · RX7 93-97

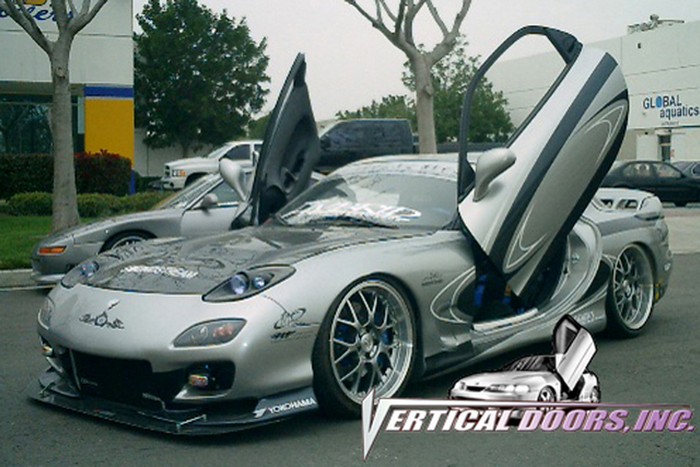

Mazda RX7 1993-1997 Vertical Lambo Doors

Made in the USA by Vertical Doors, Inc.Part # VDCMAZRX79397

$1,099 $1,499 Made to order

Made to order by Vertical Doors, Inc.: ships in 10–15 business days, then 3–5 days by FedEx Ground in the US.

Fits Mazda RX7 1993–1997. Check yours:

Total · free US shipping

$1,099

or pay with

Secure card checkout by Stripe.

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number
VDCMAZRX79397
Fits
Mazda RX71993–1997
Made by
Vertical Doors, Inc., USA
In the kit
Left and right hinge assemblies, gas shocks, mounting hardware, instructions

Part number VDCMAZRX79397 is made by Vertical Doors, Inc., the only manufacturer of vertical lambo door conversions in the USA, with more than 20 years behind the product. The kit fits the 1993-1997 Mazda RX7 and covers every trim across all five model years, 1993 through 1997. Each hinge is made in the USA from domestic hardened steel, and the design is patented.

  • Two Vertical Doors, Inc. lambo door hinges, one for each side
  • Two gas shocks to hold the doors open
  • All the mounting hardware needed for the job

The hinges mount straight to the factory bolt pattern on the RX7, so this is a direct bolt-on job, and the conversion is completely reversible if you ever want the car back on its stock hinges. A step-by-step instruction manual comes in the box and VDI backs it with free tech support. Even so, we recommend having a professional installer fit the kit using those supplied instructions. VDI can also point you to local, nationwide, and mobile installers if you need one.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
