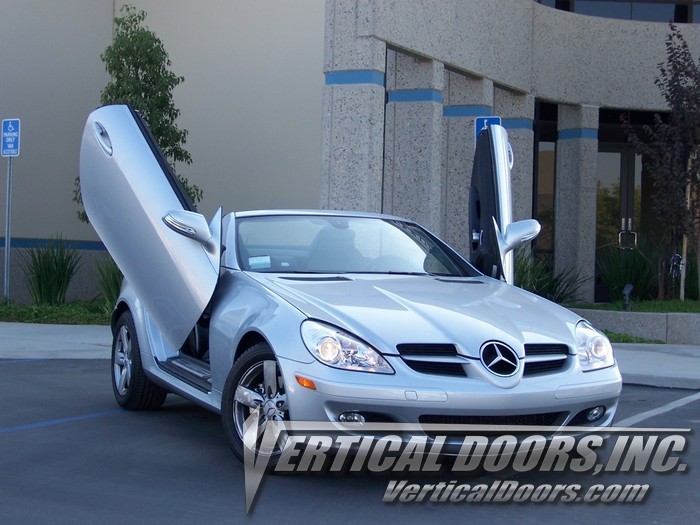

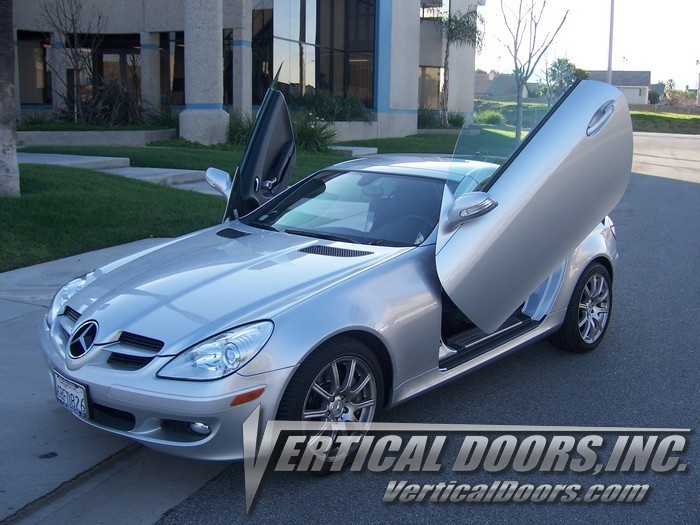

MERCEDES SLK 2005-2010 VERTICAL LAMBO DOORS

Name: MERCEDES SLK 2005-2010 VERTICAL LAMBO DOORS
Brand: Vertical Doors, Inc.
SKU: VDCMERSLK0510
Price: 1199.00 USD
Availability: InStock

Made in the USA by Vertical Doors, Inc.Part # VDCMERSLK0510

$1,199 $1,699 Made to order

Made to order by Vertical Doors, Inc.: ships in 10–15 business days, then 3–5 days by FedEx Ground in the US.

Fits Mercedes SLK 2005–2010. Check yours:

Total · free US shipping

$1,199

or pay with

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number: VDCMERSLK0510
Fits: Mercedes SLK2005–2010
Made by: Vertical Doors, Inc., USA
In the kit: Left and right hinge assemblies, gas shocks, mounting hardware, instructions

Fitment first: this kit covers the Mercedes SLK from 2005 through 2010, and it works on every trim in that range, including the SLK 200 Kompressor, SLK 280, SLK 300, SLK 350, and the SLK 55 AMG. Part number VDCMERSLK0510 comes from Vertical Doors, Inc., which builds each conversion around one specific vehicle instead of selling a universal hinge and leaving you to make it fit.

Two Vertical Doors, Inc. lambo door hinges, one for each side of the car
Two gas shocks
All the mounting hardware needed for the swap

Each hinge mounts to the SLK’s factory bolt pattern, so this is a direct bolt-on kit, and the conversion is completely reversible if you ever want the car back to stock. The hardware is made in the USA from domestic hardened steel, and the design is patented here. An instruction manual ships in the box and VDI backs it with free tech support, but doors are heavy and alignment matters, so we recommend having a professional installer handle the job using the supplied instructions.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
