ShippingFree in the US
ReturnsFinal sale
InstallFactory bolt pattern
Made inthe USA

Vertical Doors, Inc. sells this kit as final sale: it can’t be returned or exchanged, so check your year and model before ordering. Returns policy

Questions about fit? Email sales@verticallambodoors.com.

Cadillac · Escalade 02-06

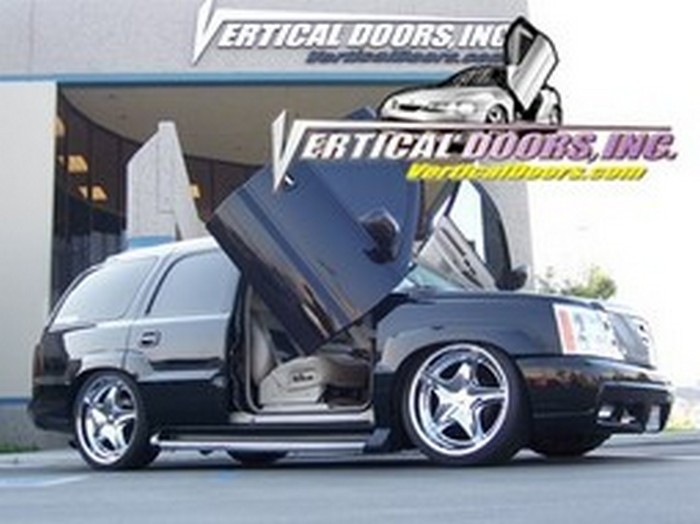

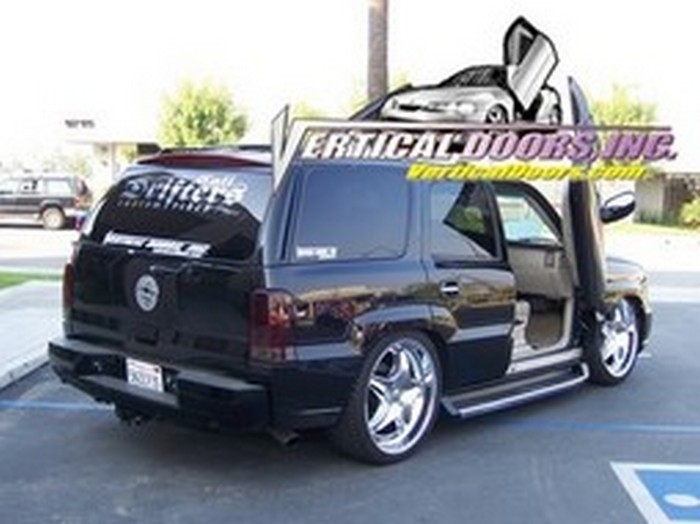

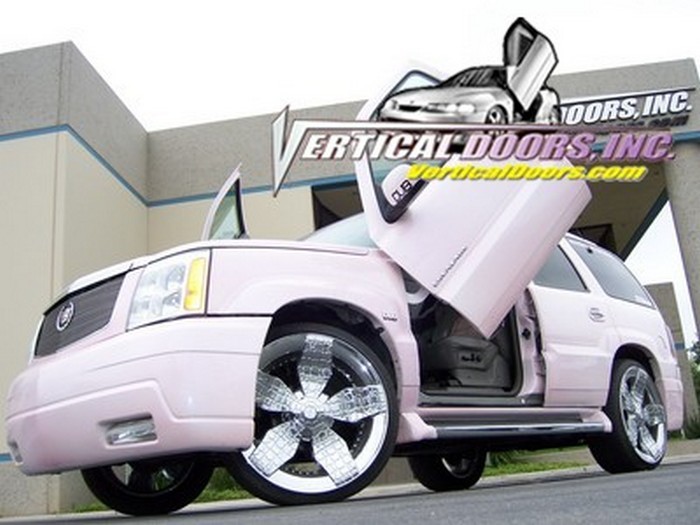

Cadillac Escalade 2002-2006 Vertical Lambo Doors

Name: Cadillac Escalade 2002-2006 Vertical Lambo Doors
Brand: Vertical Doors, Inc.
SKU: VDCCADESC0206
Price: 1259.00 USD
Availability: InStock

Made in the USA by Vertical Doors, Inc.Part # VDCCADESC0206

$1,259 $1,499 Made to order

Made to order by Vertical Doors, Inc.: ships in 10–15 business days, then 3–5 days by FedEx Ground in the US.

Fits Cadillac Escalade 2002–2006. Check yours:

Total · free US shipping

$1,259

or pay with

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number: VDCCADESC0206
Fits: Cadillac Escalade2002–2006
Made by: Vertical Doors, Inc., USA
In the kit: Left and right hinge assemblies, gas shocks, mounting hardware, instructions

Fitment runs 2002 through 2006 Cadillac Escalade, and it covers every trim level in that range. This is part number VDCCADESC0206 from Vertical Doors, Inc., a hinge conversion that lets your factory doors swing up vertically instead of out. The hinges are built in the USA from domestic hardened steel, and the design is patented here as well.

Two Vertical Doors, Inc. lambo door hinges, one for each side
Two gas shocks to hold the doors open
All mounting hardware

The hinges are a direct bolt-on to the factory bolt pattern, and the conversion is reversible if you ever want to return to stock. Plan for some fabrication on this generation, though: GM trucks and SUVs from 2006 and older need the factory door hinges removed and new holes drilled and tapped before the VDI hinges bolt in. Because of that, truck and SUV kits are non-refundable and non-exchangeable, so confirm your year and model before ordering. We recommend having a professional installer handle the job, working from the instructions supplied with the kit.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
