CHEVROLET COBALT 2004-2012 VERTICAL LAMBO DOORS

Name: CHEVROLET COBALT 2004-2012 VERTICAL LAMBO DOORS
Brand: Vertical Doors, Inc.
SKU: VDCCHEVYCOB0409
Price: 1099.00 USD
Availability: InStock

Made in the USA by Vertical Doors, Inc.Part # VDCCHEVYCOB0409

$1,099 $1,295 Made to order

Made to order by Vertical Doors, Inc.: ships in 10–15 business days, then 3–5 days by FedEx Ground in the US.

Fits Chevrolet Cobalt 2004–2012. Check yours:

Total · free US shipping

$1,099

or pay with

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number: VDCCHEVYCOB0409
Fits: Chevrolet Cobalt2004–2012
Made by: Vertical Doors, Inc., USA
In the kit: Left and right hinge assemblies, gas shocks, mounting hardware, instructions

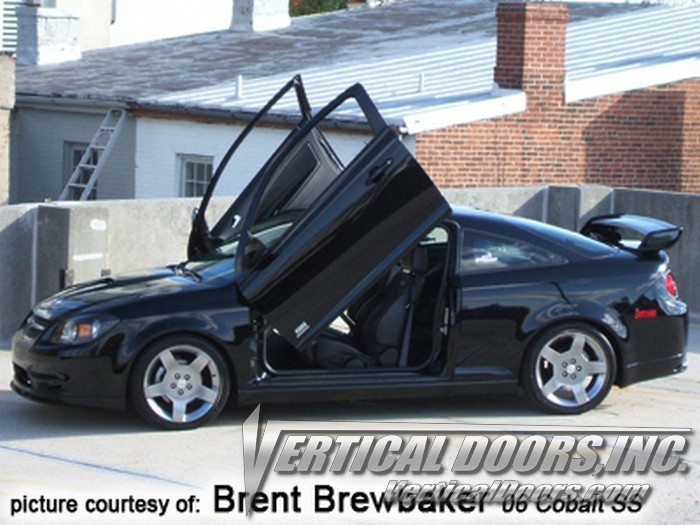

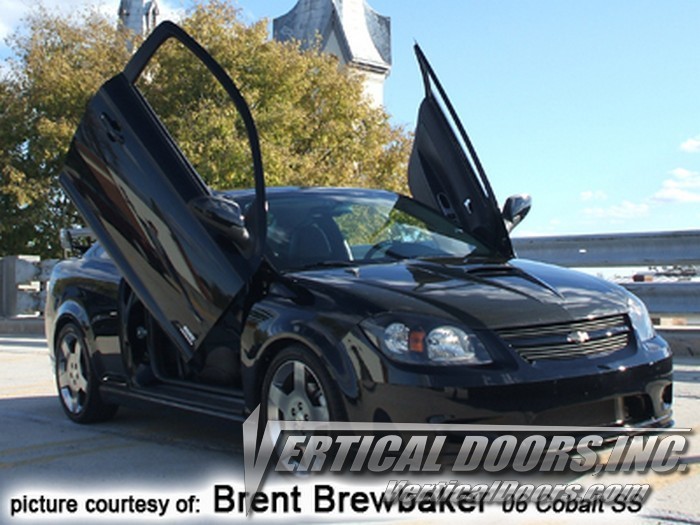

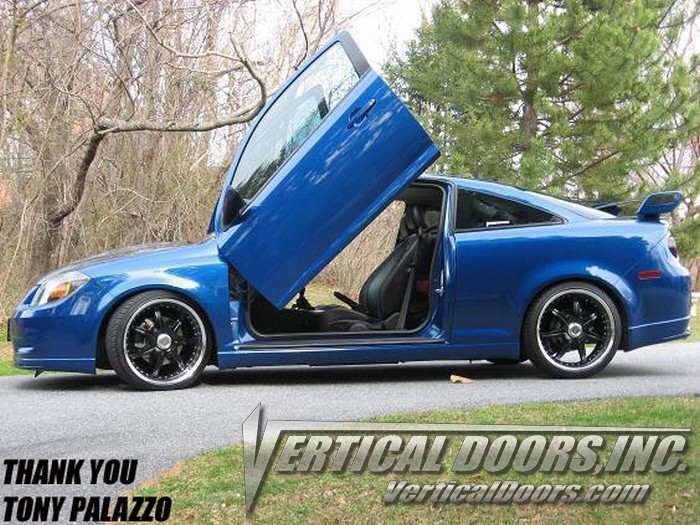

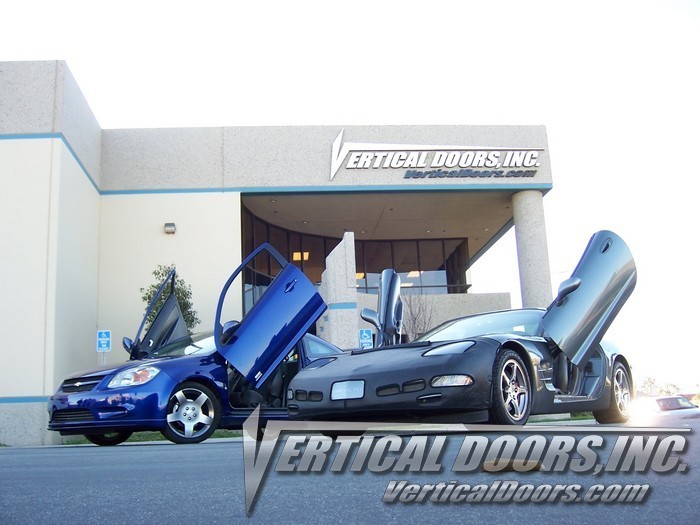

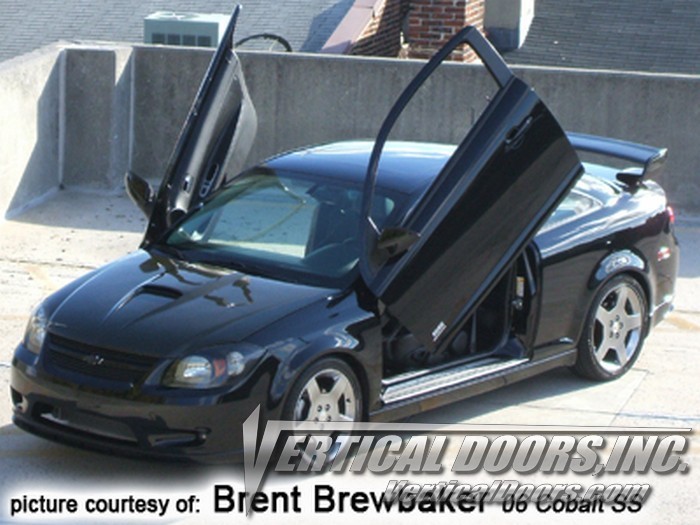

The Chevrolet Cobalt takes well to a vertical door conversion. Instead of swinging out the way it left the factory, each door opens outward slightly and then rotates up alongside the fender, which changes the stance of the car completely whenever a door is open. This kit from Vertical Doors, Inc., part number VDCCHEVYCOB0409, fits every trim of the Cobalt from 2004 through 2012.

What comes in the box:

Two Vertical Doors, Inc. lambo door hinges, one for each side
Two gas shocks to hold the doors up once they are open
All the mounting hardware needed for the conversion

The hinges mount directly to the Cobalt’s factory bolt pattern, and the conversion is fully reversible if you ever want to put the car back to stock. Every kit is made in the USA from domestic hardened steel, and the hinge design is patented. VDI supplies a printed instruction manual with the kit and backs it with free tech support. A mechanically inclined owner with basic tools can do the job, but our recommendation is to have a professional installer handle the conversion using the instructions supplied with the kit.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
